【SML20-PM】WiFi6 Smart Power Monitor Module | Power & Energy Usage Tracking Device
The smart WiFi6 Power monitor provides real-time power and energy consumption monitoring, allowing users to clearly view electricity usage data and trends. Its compact, modular design makes it suitable for various power distribution and control applications.
Main Advantages:
- WiFi 6 wireless connectivity
- Real-time power & energy monitoring
- Energy usage statistics and records
- Remote monitoring capability
- Compact modular design
DESCRIPTION
Product Description
Product Specifications
| Product name: | WiFi6 power monitor |
| Product type: | Smart WiFi6 energy consumption monitor |
| Input: | AC110-240V 50/60Hz |
| Output: | Maximum 16A/3840W @240V AC |
| WiFi signal copy: | support |
| WiFi protocol: | WiFi 6 |
| Operating range: | <100 meters |
| Dimensions (width*depth*height): | 34*29*17mm |
| Protection level: | IP20 |
| Part Number: | 【SML20-PM】 |
Product Display
Ultra-mini body.
34x29x17mm,
designed specifically for small mounting boxes.
The all-new WiFi 6
offers a more stable signal, supports more connections, and is backward compatible.
View power statistics in real time
Real-time monitoring of voltage, current, and power
Power consumption is visible
Closely monitor power consumption and reduce energy costs; power consumption data can be sent to your email with a single click.
Electricity Consumption Warning Settings
After setting an electricity consumption threshold, an alert will be issued if electricity consumption exceeds the set value.
Battery Consumption Inquiry
You can view hourly, daily, monthly, and total battery consumption within the app.
Remote control app
Battery usage can be viewed even outdoors.

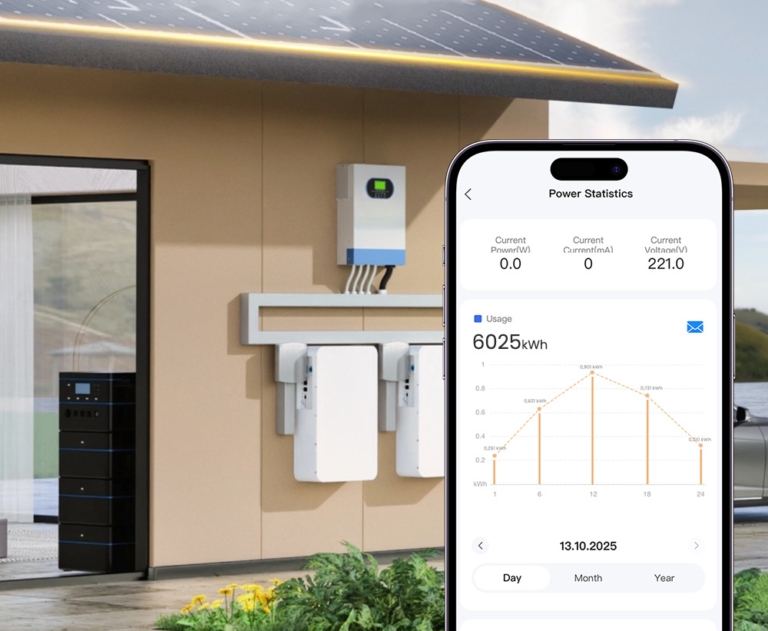

Optimize Photovoltaic Power Generation
Monitor the production, power supply, power consumption, and real-time power consumption of rooftop photovoltaic systems, and analyze the power consumption ratio.
Safe Wiring Design
Concealed terminal block design for enhanced safety
Safe Wiring Design
Concealed terminal block design for enhanced safety
Installation Method
Installation Box and Meter Box
Wiring diagram
Product Dimensions
Trading Information
| Packaging Details: | The inner packaging is packaged with a packaging box containing an inner support structure, which can effectively prevent the product from being damaged during transportation. The outer packaging adopts a compression-resistant structure, which can effectiv |
FAQ
A1: The product is manufactured in China.
A2: The product has CE/FCC/ROHS certifications.
