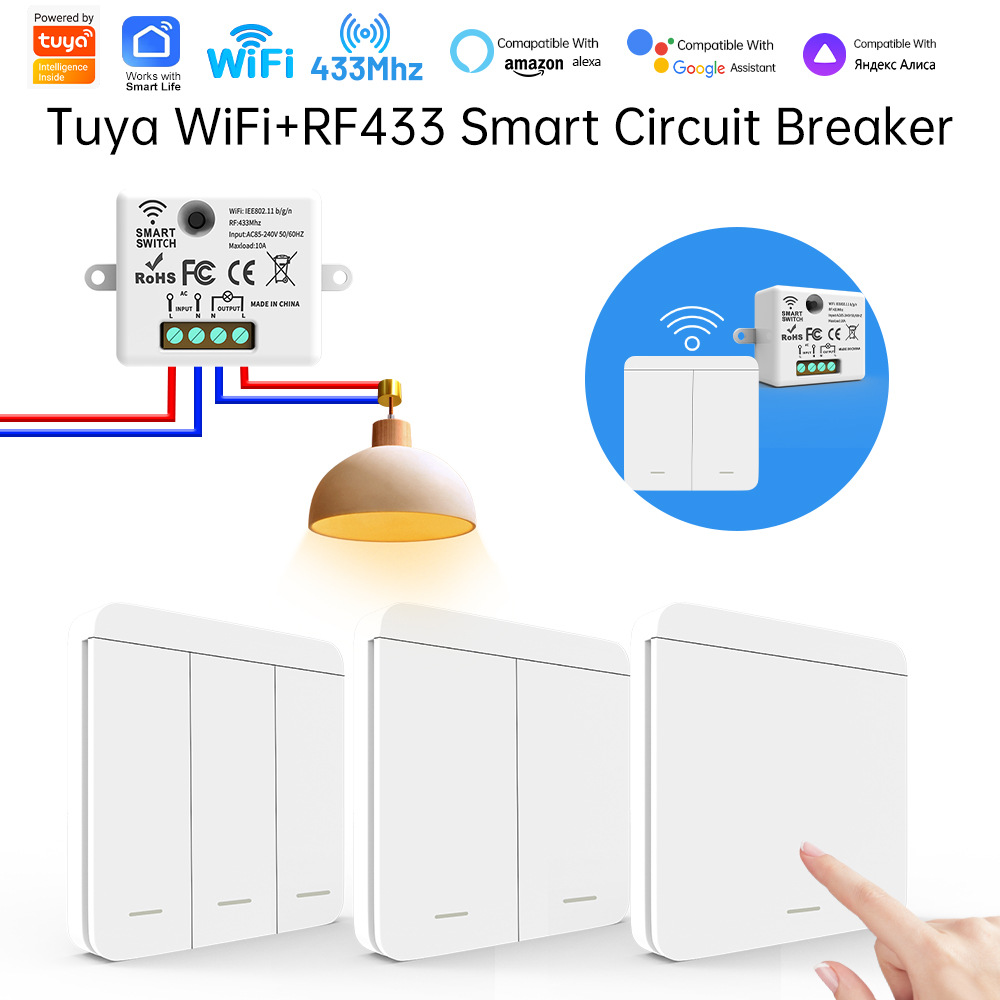

【SML05】+【SSBB02】Tuya WiFi+RF433 Smart Wireless Switch Remote Control and Controller Switch Battery powered
WiFi+RF433 Smart Wireless Switch and Controller Switch Set combines battery power with Tuya WiFi functionality, offering a flexible and efficient control experience for your smart home. With a simple press, the switch can be easily controlled, and the installation is hassle-free, requiring no complex wiring. Thanks to Tuya WiFi integration, you can remotely control your devices through the Tuya app, providing full control anytime, anywhere. The set also supports voice control, compatible with Alexa and Google Assistant, enhancing the smart home experience.
- Flexible Installation: The switch can be easily attached to any surface without complex installation, making it ideal for various home settings.
- Tuya WiFi Smart Control: Remotely control your devices via the Tuya app, keeping your home connected at all times.
- Remote & Voice Control: Supports remote operation through the Tuya app and voice control with Alexa and Google Assistant.
- Energy-Saving Design: Powered by batteries, offering a simple and convenient solution without the need for complicated power connections or wiring.
- Smart Home Integration: Seamlessly integrates with other smart home devices, enhancing convenience and automation in your living space.
DESCRIPTION
Product Specifications
| Product name: | WiFi+RF433 Intelligent Wireless Remote Switch |
| Controller（receiver）: | |
| Voltage: | AC85-265V 50HZ/60HZ |
| Main frequency: | WiFi: IEEE 802.11b/g/n working frequency: 433.92MHZ |
| Total load power: | <1000W |
| Maximum current: | 10A |
| Control distance: | 20-100M（Open region） |
| Size: | 67mm*41.2mm*25.7mm |
| Product Model： | 【SML05-B-TW】 |
| Wireless Switch: | |
| Voltage: | DC 12V |
| Main frequency: | 433.92MHZ |
| Total load power: | <10mW |
| Control distance: | <100M（Indoor distance） |
| Operating temperature: | -10°C~70°C |
| Battery standard: | 12V 27A Battery |
| Size: | 86mm*86mm*13mm |
| Product Model： | 【SSBB02-R-1】；【SSBB02-R-2】；【SSBB02-R-3】 |
Product SKU List
| Picture | Name | Network mode | Regular color |
|---|---|---|---|
 |
1 Receiver 1 Switch(1gang) | WiFi + RF433 | White |
 |
1 Receiver 2Switch(1gang) | WiFi + RF433 | White |
 |
2 Receiver 1Switch(2gang) | WiFi + RF433 | White |
 |
2 Receiver 2Switch(2gang) | WiFi + RF433 | White |
 |
3 Receiver 1Switch(3gang) | WiFi + RF433 | White |
 |
3 Receiver 3Switch(3gang) | WiFi + RF433 | White |
 |
Switch(1gang) | RF433 | White |
 |
Switch(2gang) | RF433 | White |
 |
Switch(3gang) | RF433 | White |
 |
1 Receiver(WiFi + RF433) | WiFi+RF433 | White |
 |
1 Receiver(RF433) | RF433 | White |
Product Description
TideLink Wireless Remote Control Switch
Supporting both WiFi and RF433 dual-protocol compatibility, this kit works seamlessly with a wide range of smart devices and home accessories, greatly expanding its application scope. Enjoy a truly smart life and say goodbye to traditional switch operations.
The unique “Flexible Placement” design makes installation incredibly easy without the need for complex wiring or drilling, making it suitable for any room or space. Whether it’s lighting, air conditioning, or other home devices, they can be intelligently controlled with this kit.
Package list:
Product*1, Color box*1, Manual*1, Accessories*1
Tuya WiFi+RF433 Smart Switch
Multiple function ; Open smart life with one click
Placed in any position
App remote control
Voice control
work with Goole, Alexa
Controller connection method
Fluorescence radiation
In the dark,don't worry about finding the switch
Pairing method & Reset signal
Quick & Easy Installation
433MHz Strong Signal
Long Life Battery
27A 12V Battery can be used for a year, long life without troble
WiFi+433MHz Strong Signal
Timing / Countdown / Schedule
Free collocation is controlled by your heart
Multiple collocation ways: 1.Several switches control one light; 2.One switch control several lights

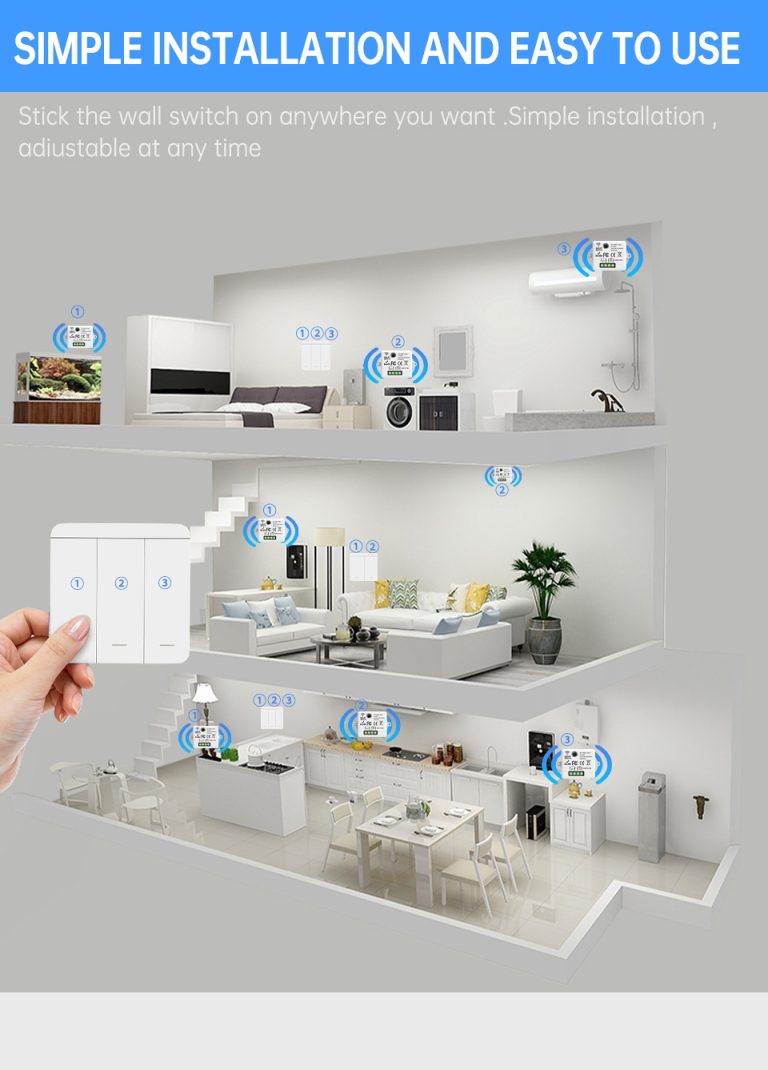

Simple Installation and easy to use
Stick the wall switch on anywhere you want, Simple installation adiustable at any time.
Controller(receiver) Parameters
Wireless Switch Parameters
Trading Information
| Packaging Details: | The inner packaging is packaged with a packaging box containing an inner support structure, which can effectively prevent the product from being damaged during transportation. The outer packaging adopts a compression-resistant structure, which can effectiv |
FAQ
A1: The product is manufactured in China.
A2: The product has CE/FCC/ROHS certifications.
