【SML01】+【SSBB03】US RF433 Wireless Switch Kit – No Wiring Smart Remote Control Light Switch
The Wireless Switch Kit uses RF433 technology for easy installation — no wiring or wall damage required. Freely place switches anywhere with long-range stable signals. Made of fireproof materials for safe and durable use. Ideal for lighting and smart home scenarios with flexible multi-control options.
Key Advantages:
- No wiring required, easy peel-and-stick installation
- Long-range RF433 wireless control
- Quick response and stable performance
- Fireproof and durable materials
- Supports one-key multi-control setup
- Suitable for lighting, sockets, and smart home control
Share:
Facebook
Twitter
LinkedIn
WhatsApp
Table of Contents
DESCRIPTION

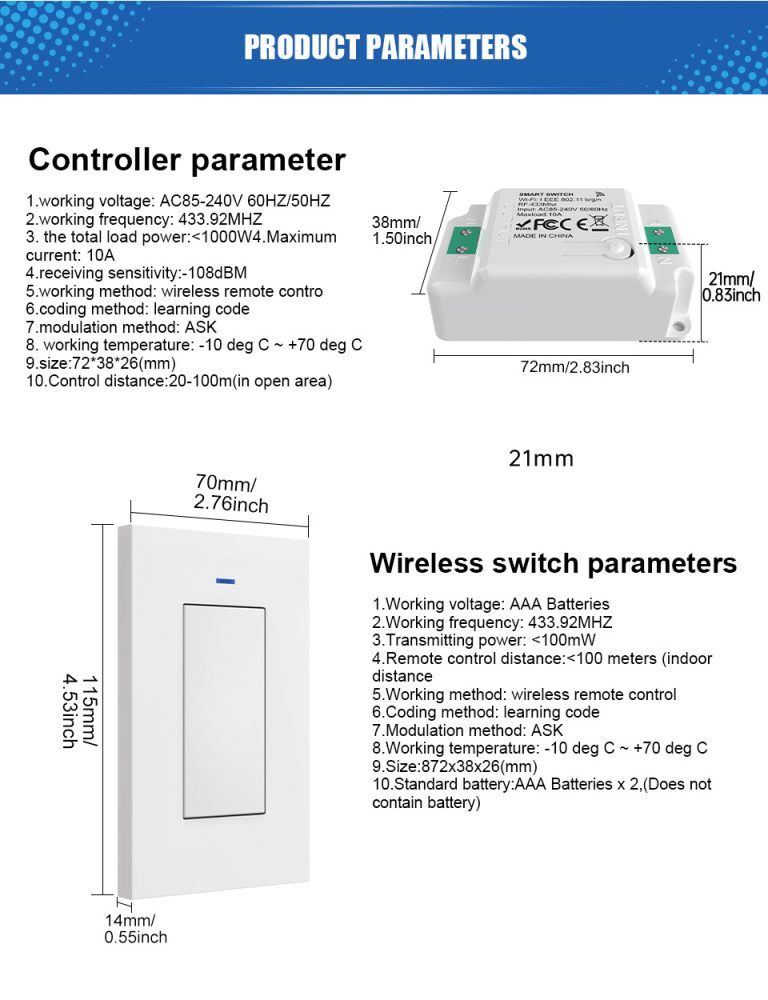

Product Specifications
| Product name: | Wireless Switch |
| Controller（receiver）: | |
| Voltage: | AC85-265V 50HZ/60HZ |
| Main frequency: | 433.92MHZ |
| Total load power: | <1000W |
| Maximum current: | 10A |
| Control distance: | 20-100M（Open region） |
| Modulation method: | ASK |
| Product Code： | 【SML01-B-R】 |
| Wireless Switch: | |
| Voltage: | DC 12V |
| Main frequency: | 433.92MHZ |
| Working method: | wireless remote control |
| Modulation method: | ASK |
| Total load power: | <10mW |
| Control distance: | <100M（Indoor distance） |
| Size: | 115*70*14mm |
| Operating temperature: | -10°C~70°C |
| Battery standard: | AAA batteries*2(Dose not contain battery) |
| Product Code： | 【SSBB03-R-2】； |
Product SKU List
| Picture | Name | Network mode | Regular color |
|---|---|---|---|
 |
1 Receiver 1 Switch(1gang) | RF433 | White |
 |
1 Receiver 2Switch(1gang) | RF433 | White |
 |
2 Receiver 1Switch(2gang) | RF433 | White |
 |
2 Receiver 2Switch(2gang) | RF433 | White |
 |
3 Receiver 1Switch(3gang) | RF433 | White |
 |
3 Receiver 3Switch(3gang) | RF433 | White |
Product Description
Trading Information
| Packaging Details: | The inner packaging is packaged with a packaging box containing an inner support structure, which can effectively prevent the product from being damaged during transportation. The outer packaging adopts a compression-resistant structure, which can effectiv |
