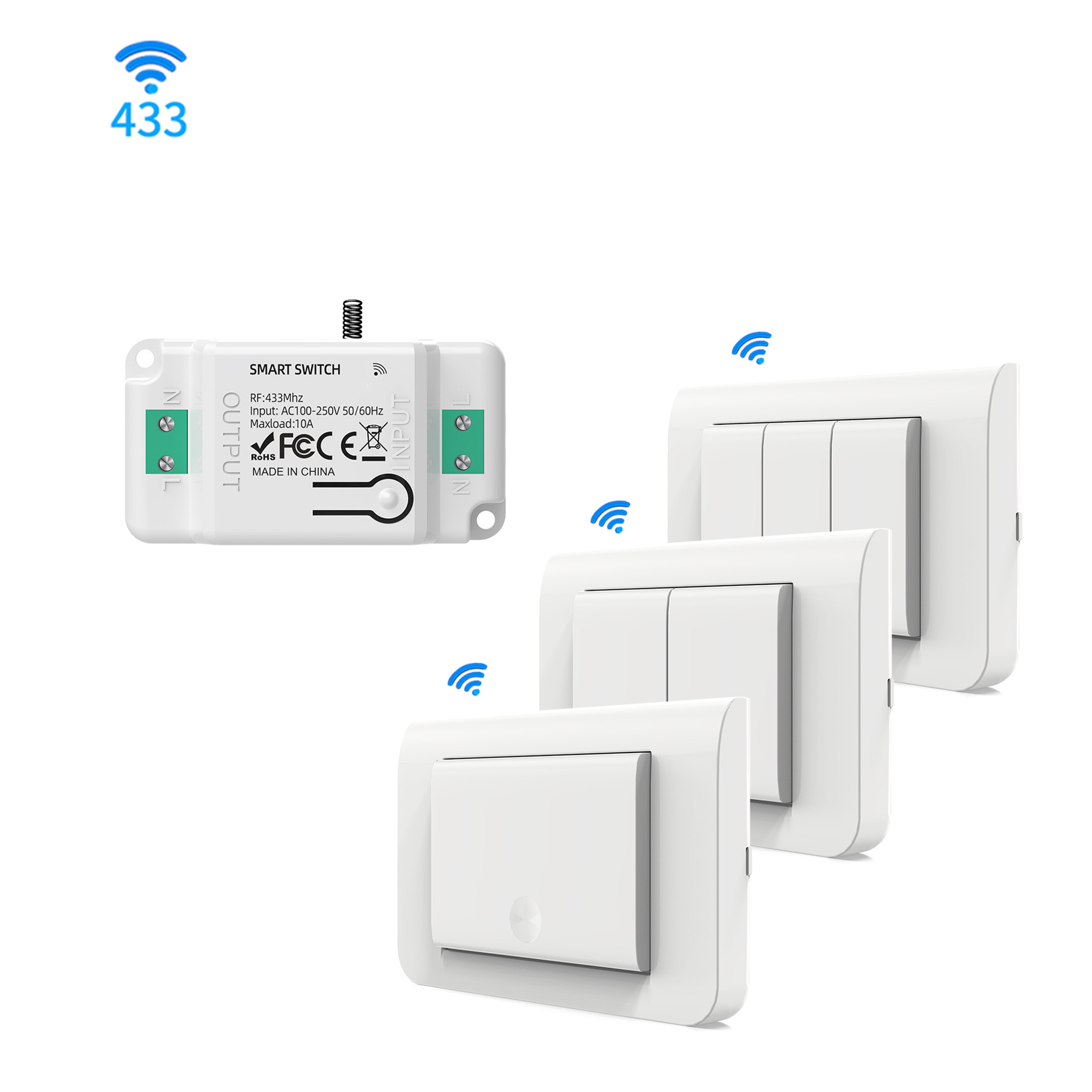

US Standard RF433 Wireless Switch Kit | No Wiring Stick-On Remote Switch
This RF433 wireless switch kit supports remote control with wireless signal transmission. The switch features a stick-on design for easy installation without wiring. It supports multiple switch control and long-distance transmission, suitable for home lighting control.
Key Features:
- RF433 wireless control

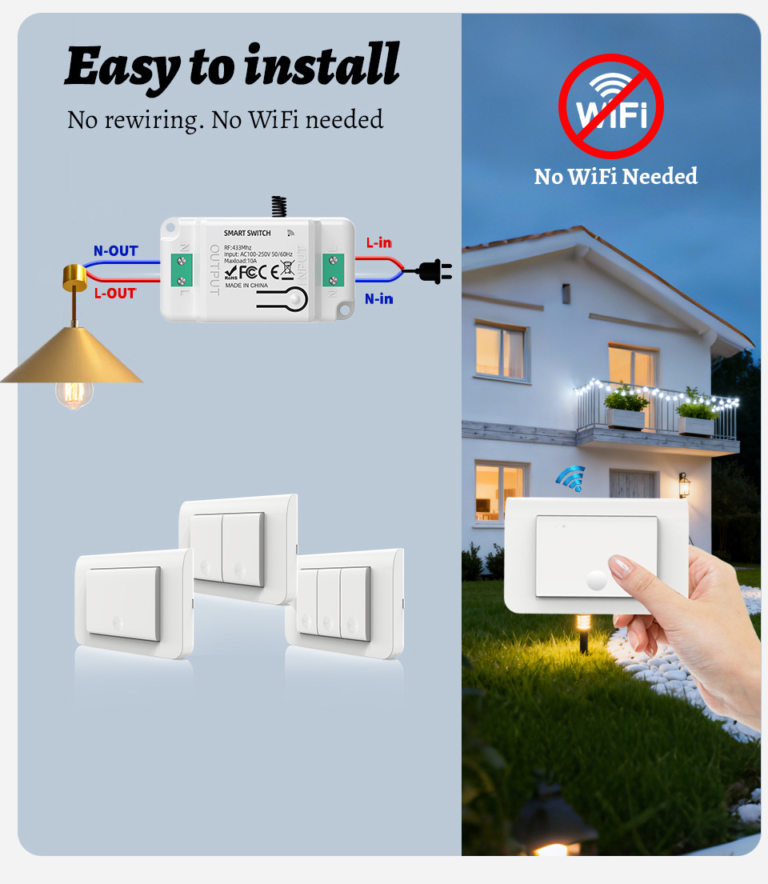

- No wiring required
- Stick-on installation

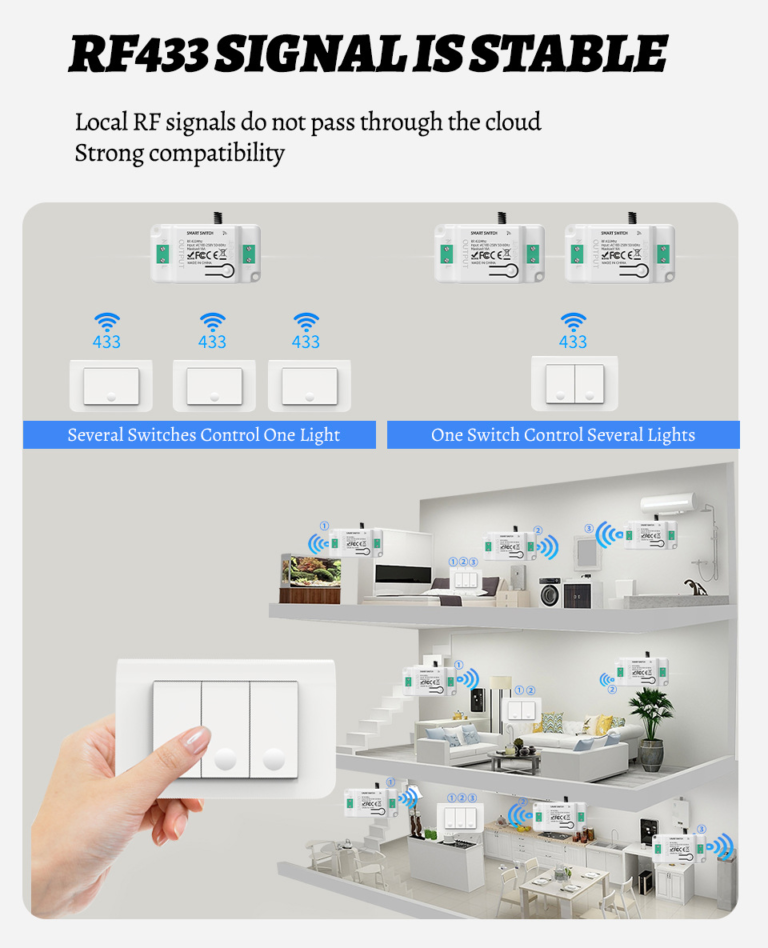

- Multi-switch control
- Long distance transmission
- Battery powered
- Multi-device control
Share:
Facebook
Twitter
LinkedIn
WhatsApp
Table of Contents
DESCRIPTION
Product Specifications
| Product name: | Wireless Switch |
| Controller parameter: | |
| Working voltage: | AC100-250V 50/60Hz |
| Working frequency: | 433.92MHZ |
| The total load power: | <1000W |
| Maximum Current: | 10A |
| Receiving sensitivity: | -108dBM |
| Working method: | wireless remote contro |
| Modulation method: | ASK |
| Working temperature: | -10 °C ~ +70 °C |
| Size: | 72*38*26(mm) |
| Control distance: | 20-100m(in open area) |
| Product Code： | 【SML01-B-R】 |
| Wireless Switch: | |
| Type of work: | ON/OFF |
| Working voltage: | DC 3V (CR2032) |
| Working frequency: | 433.92MHZ |
| Number of buttons: | 1-key,2-key,3-key |
| Switching times: | More than 200,000 times |
| Product size: | 118x75x16mm |
| Launch distance: | 100M (outdoor),30M (indoor) |
| Product Code： | 【SSBB06】 |
Product SKU List
| Picture | Name | Network mode | Regular color |
|---|---|---|---|
 |

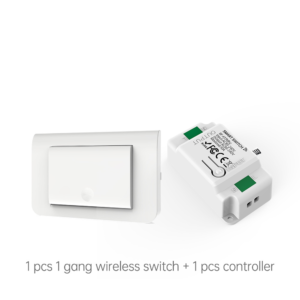

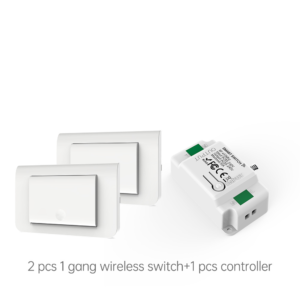

2 pcs 1 gang wireless switch+1 pcs controller | RF433 | White |
 |

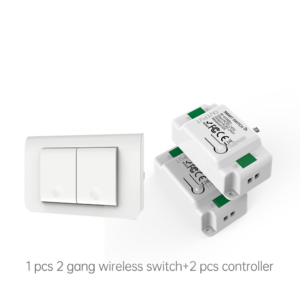

1 pcs 2 gang wireless switch+2 pcs controller | RF433 | White |
 |

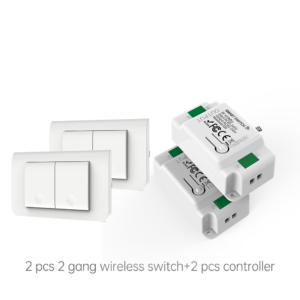

2 pcs 2 gang wireless switch+2 pcs controller | RF433 | White |
 |
2 pcs 2 gang wireless switch+2 pcs controller | RF433 | White |
 |

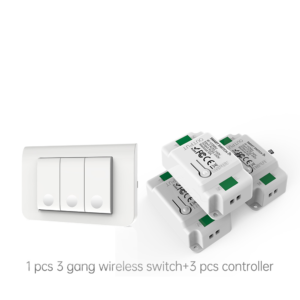

1 pcs 3 gang wireless switch+ 3 pcs controller | RF433 | White |
 |

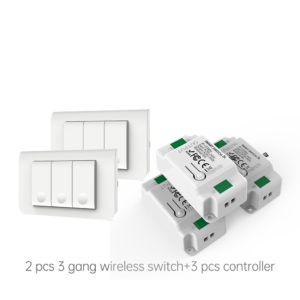

2 pcs 3 gang wireless switch+3 pcs controller | RF433 | White |
Product Description
