【WSB03】 Zigbee Smart Switch – Supports Neutral + Live and Live-Only Wiring, No Capacitor Needed
This Smart Zigbee magnetic latching relay smart switch supports both single live and neutral wiring, with no capacitor needed for single live wiring. It offers stable Zigbee connectivity, remote control, and voice control, compatible with Alexa and Google Assistant. With Tuya platform integration, it works seamlessly with other smart devices and includes a timer function for optimized appliance usage.
- Magnetic Latching Relay Technology: Efficient and stable control for an enhanced appliance experience.
- Zigbee Technology: Stable and efficient connection
- Single & Neutral Wiring: No capacitor needed, easy installation
- Tuya Integration: Connects with other smart devices
- Remote Control: Control appliances via smartphone
- Voice Control: Compatible with Alexa, Google Assistant
- Timer Function: Optimize appliance usage
DESCRIPTION
Product Specifications
| Product name: | Smart Switch |
| Rated Voltage： | 100-240V AC50/60Hz |
| Working temperature: | -10°C~55°C |
| Rated Power： | 3-600W/Gang |
| Wireless technology: | Zigbee3.0 |
| Product size: | 86mm*86mm*39mm |
| Supports Two-Way Control： | Yes |
| Number of Switches: | 1gang,2gang,3gang |
| Relay： | Magnetic Latching Relay |
| Wiring Method: | With Neutral Wire & Without Neutral Wire |
| Support APP: | Smart Life & Tuya Smart |
| Voice control: | Amazon Alexa / Google Assistant |
| Colors: | White / Black / Grey / Silver / Rose Gold / Gold / Custom colors |
| Timer setting: | Yes |
| Family sharing: | Yes |
| Standard: | EU/UK |
| Material: | ABS |
| Part Number: | WSB03 |
| Product Model： | 【WSB03-LEK-TZ-O-1】；【WSB03-LEK-TZ-O-2】；【WSB03-LEK-TZ-O-3】 |
| Picture | Network mode | Magnetic Relay | Wiring Method | Switch Units | Regular color | Product Model |
|---|---|---|---|---|---|---|
 |
WiFi | No Magnetic Relay | with neutral wire & without neutral wire(need Capacitor) | 1 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TW-C-1 |
|
|
WiFi | No Magnetic Relay | with neutral wire & without neutral wire(need Capacitor) | 2 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TW-C-2 |
|
|
WiFi | No Magnetic Relay | with neutral wire & without neutral wire(need Capacitor) | 3 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TW-C-3 |
|
|
WiFi | No Magnetic Relay | with neutral wire | 1 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TW-N-1 |
|
|
WiFi | No Magnetic Relay | with neutral wire | 2 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TW-N-2 |
|
|
WiFi | No Magnetic Relay | with neutral wire | 3 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TW-N-3 |
|
|
Zigbee | No Magnetic Relay | with neutral wire | 1 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TZ-N-1 |
|
|
Zigbee | No Magnetic Relay | with neutral wire | 2 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TZ-N-2 |
|
|
Zigbee | No Magnetic Relay | with neutral wire | 3 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TZ-N-3 |
|
|
Zigbee | Magnetic Relay | with neutral wire & without neutral wire(No need Capacitor) | 1 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TZ-O-1 |
|
|
Zigbee | Magnetic Relay | with neutral wire & without neutral wire(No need Capacitor) | 2 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TZ-O-2 |
|
|
Zigbee | Magnetic Relay | with neutral wire & without neutral wire(No need Capacitor) | 3 | white/black/gold/rose gold/grey/silver gray | WSB03-LEK-TZ-O-3 |
Trading Information
| Packaging Details: | The inner packaging is packaged with a packaging box containing an inner support structure, which can effectively prevent the product from being damaged during transportation. The outer packaging adopts a compression-resistant structure, which can effectiv |
Product Description
This smart wall switch is based on the Zigbee 3.0 wireless communication protocol. The wiring method is universal for Supports Neutral + Live and Live-Only Wiring, and no capacitor is required. It can be used with the gateway to control the power on and off of lighting, motors and other equipment. It can realize voice control, APP remote control, timing control and other functions to achieve a pleasant smart home experience.

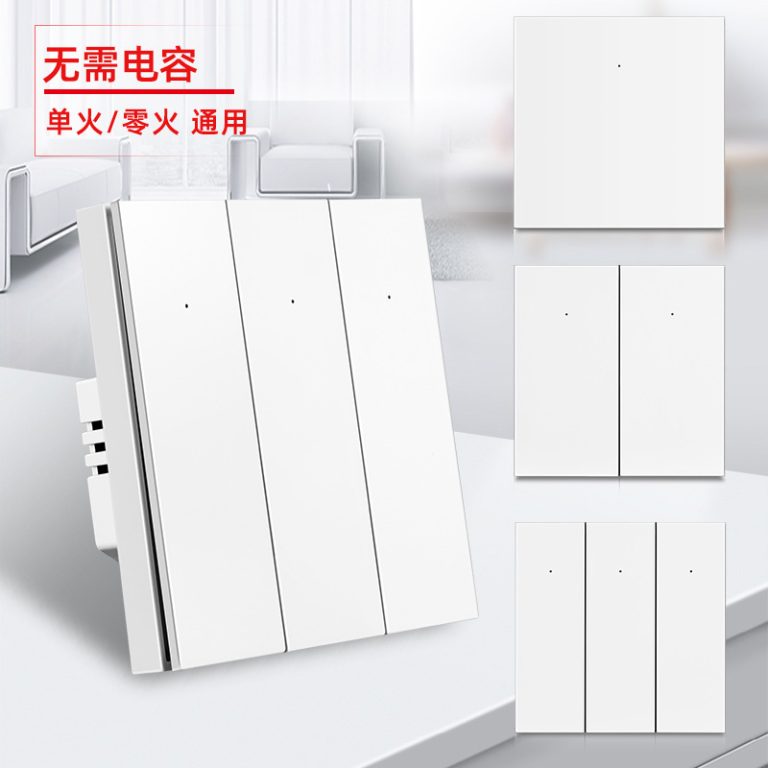

Supports Both With Neutral Wire & Without Neutral Wire Wiring
No Capacitor Needed
No Capacitor Needed
Voice Control
Support Google home & Alexa
App remote control
Support Smart Life APP & Tuya APP
Product Color
White / Black / Grey / Silver / Rose Gold / Gold / Custom colors
Timing function
Fully control and plan the time period when the smart touch switch is used, saving electricity waste.

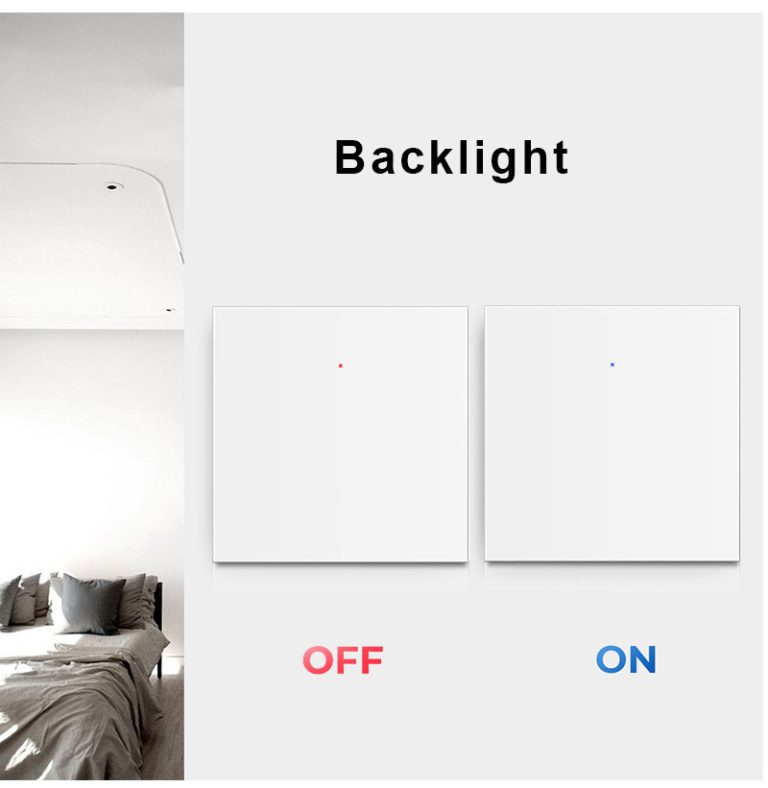

Backlight
Installation Guide
Wiring Diagram（Neutral + Live）
Wiring Diagram（Live-Only Wiring）
FAQ
A1: The product is manufactured in Shenzhen, China.
A2: The product has CE/FCC/ROHS certifications.
A3: The brand name of this product is TideLink.
