TideLink Tuya WiFi Smart Circuit Breaker (Remote Power Control / Overload Protection / Energy Monitoring)
The TideLink Tuya WiFi Smart Circuit Breaker is an intelligent power management device that supports remote power control, overload/overvoltage protection, energy monitoring, scheduling, automation scenes, and voice control.
Designed with a DIN-rail standard, it is ideal for homes, offices, shops, and industrial power distribution.
Manage your electricity usage anytime through the mobile App to enhance safety and energy efficiency.
Key Advantages:
- Remote ON/OFF power control
- Overload, undervoltage & overvoltage protection
- Real-time energy monitoring (voltage/current/power/kWh)
- APP timer, countdown & weekly scheduling
- Voice control with Alexa, Google Assistant & more
- Smart automation scenes & device linkage
- Family sharing for multi-user control
- DIN-rail installation, fits standard breaker boxes
- Power-off memory for automatic recovery
Share:
Facebook
Twitter
LinkedIn
WhatsApp
Table of Contents
DESCRIPTION
Product Specifications
| Product name: | WiFi Smart Circuit Breaker |
| Number of poles: | 1P+N |
| Input voltage： | AC90~300V 50/60hz |
| Wireless technology: | WiFi 2.4GHZ 802.11b/g/n |
| Maximum current: | 16A |
| Power Monitor: | Support： Monitor load current, voltage, and power in real time. Record electricity consumption for different time periods (year/month/day/hour). |
| Install： | 35mm Din guide rail |
| APP: | Tuya smart/Smart Life |
| Voice control： | Google Home/Alexa/Yandex Alice |
| Scheduled setting： | Support |
| Countdown setting: | Support |
| Cyclic timing setting： | Support |
| Maintenance lock： | Support |
| Switch history: | Support |
| Restart status customization： | Support |
| Button indicator light setting: | Support |
| Family sharing: | Support |
| Current: | 1-63A (adjustable) |
| Overload protection: | 1KW-26KW (adjustable) |
| Overvoltage protection: | 220V-265V (adjustable) |
| Undervoltage protection: | 76V-240V (adjustable) |
| Temperature protection: | 40-150°C (adjustable) |
| Product dimensions: | 8.1*7.2*1cm |
| Regular color: | White |
| Part Number: | 【SML13】 |
| Product Code： | 【SML13-TW-1P】 |
Product SKU List
| Picture | Product name | Network mode | current | Regular color | Product Code |
|---|---|---|---|---|---|
 |
1P+N | WiFi | 1-63A | White | SML13-TW-1P |

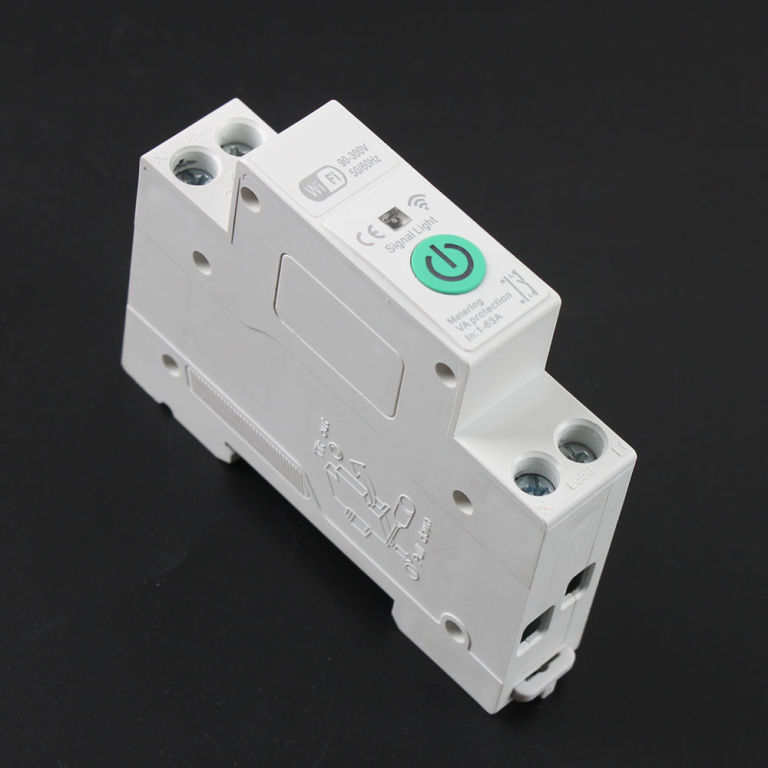

Product Display
Product Description
Trading Information
| Packaging Details: | The inner packaging is packaged with a packaging box containing an inner support structure, which can effectively prevent the product from being damaged during transportation. The outer packaging adopts a compression-resistant structure, which can effectiv |
FAQ
Q1: Where is the product manufactured?
A1: The product is manufactured in China.
Q2: certifications does this product have?
A2: The product has CE/FCC/ROHS certifications.
