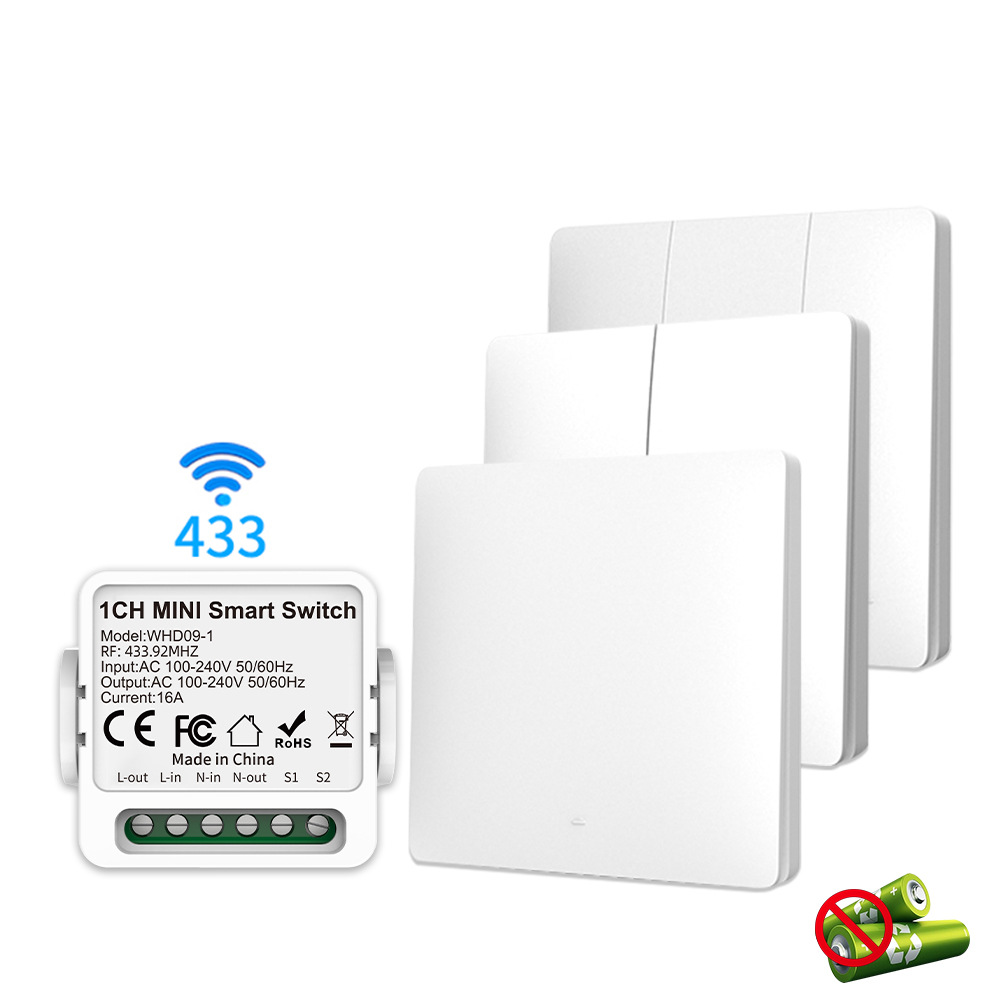

【WHD09】+【SSSB01】86Type RF433 Self-Powered Wireless Switch – No Battery Smart Remote Wall Switch
The Self-Powered Wireless Switch uses energy harvesting technology, requiring no batteries and no wiring. Each press generates its own power, enabling wireless control and flexible placement anywhere in your home. Perfect for lighting, corridors, bedrooms, and kitchens, it features durable fireproof materials, fast response, and long-lasting performance.
Key Advantages:
- Battery-free and wiring-free eco-friendly design

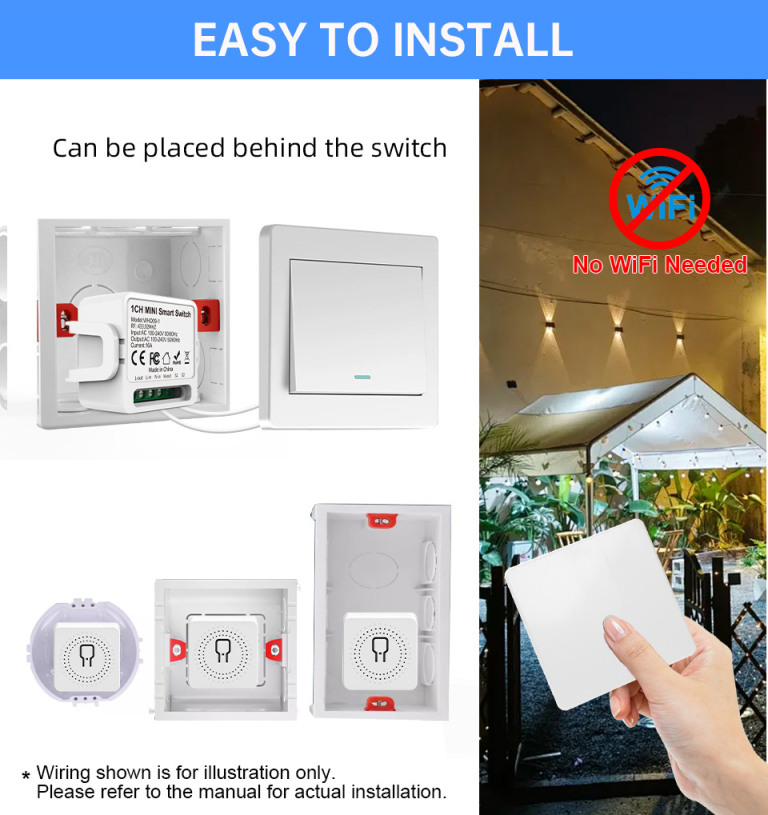

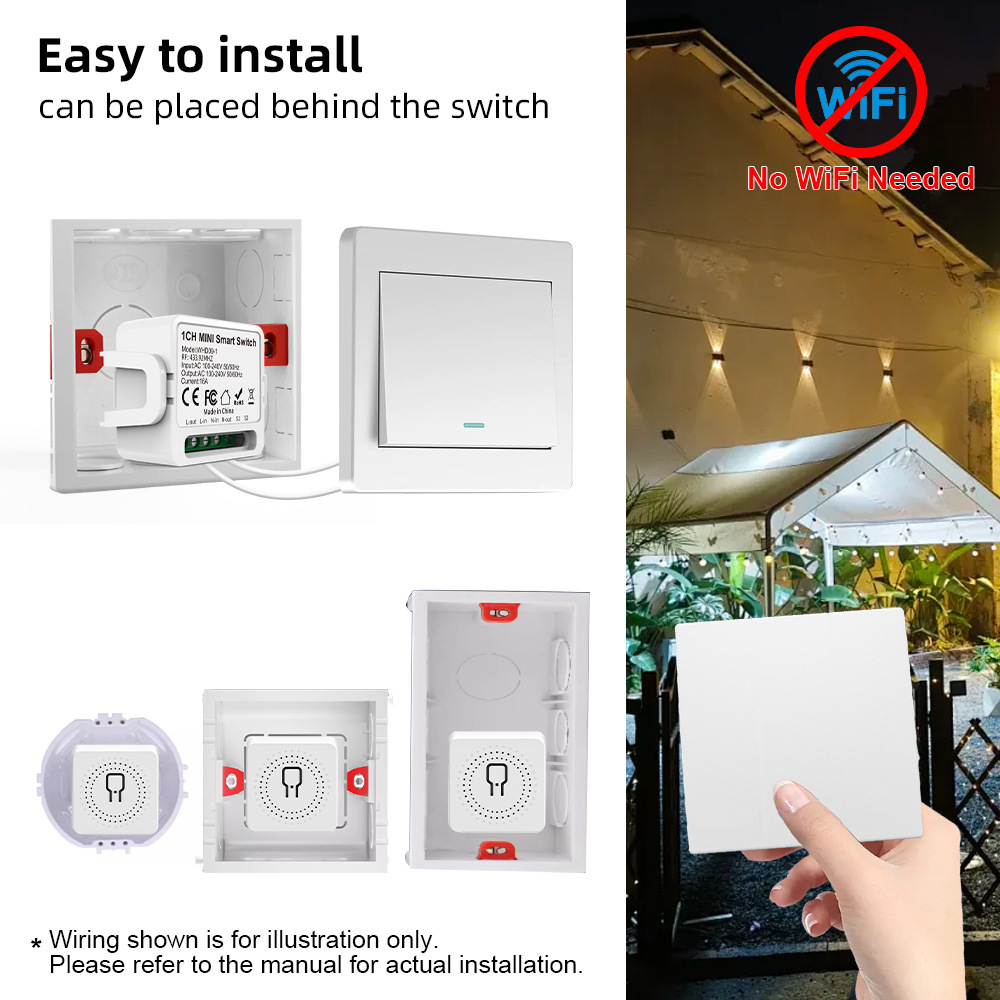

- Flexible installation – stick anywhere without damage
- Stable long-range wireless connection
- High sensitivity and long lifespan
- Fire-resistant and durable housing
- Supports multi-point smart control with receiver module
Share:
Facebook
Twitter
LinkedIn
WhatsApp
Table of Contents
DESCRIPTION

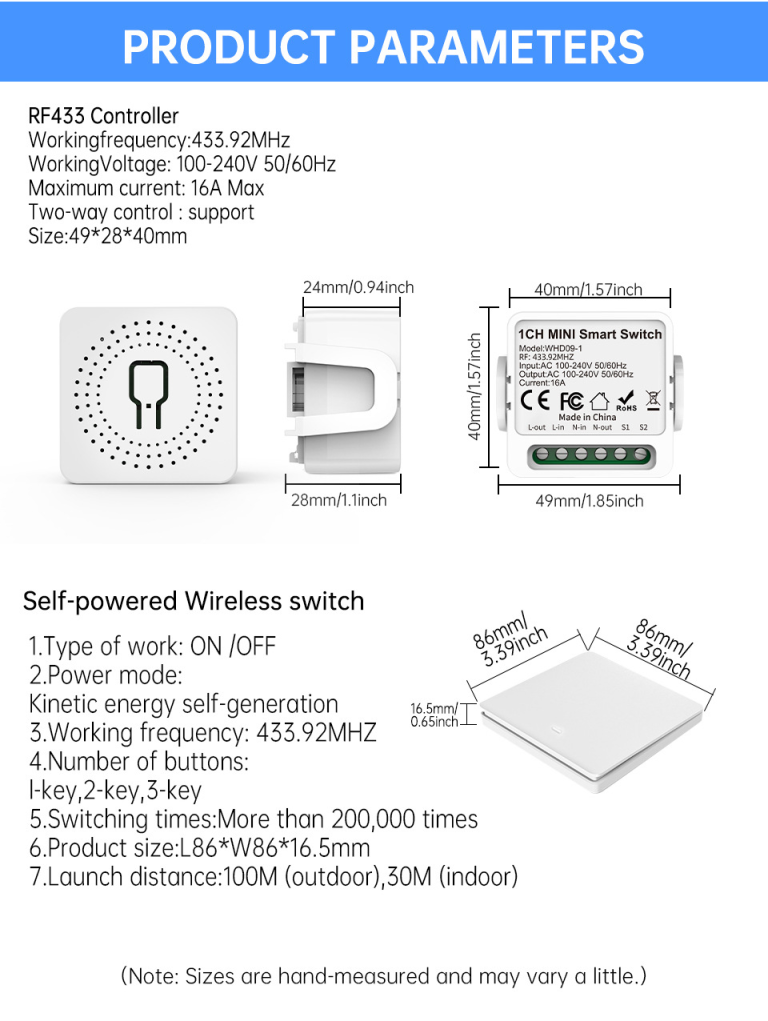

Product Specifications
| Product name: | Wireless Switch |
| Controller（receiver）: | |
| Working frequency: | RF433MHz |
| Voltage: | AC 100V-240V 50/60Hz |
| CH: | 1CH, 2CH, 3CH |
| Rate current: | 16A / 10A |

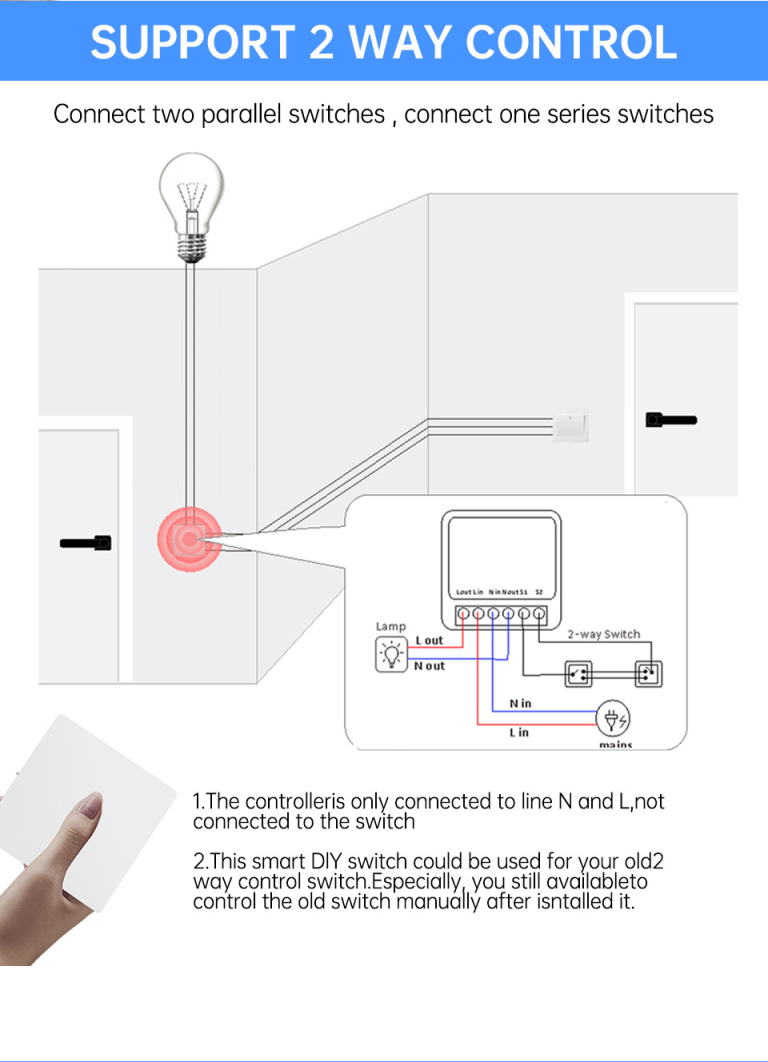

| Two-way control: | supportol(can be made) |
| Product size: | 49*28*40mm |
| Product Code： | 【WHD09-1-S-R】；【WHD09-2-S-R】；【WHD09-3-S-R】； |
| Wireless Switch: | |
| Type of work： | ON/OFF |
| Power mode: | Kinetic energy self-generation |
| Working frequency: | RF433.92MHZ |
| Working method: | wireless remote control |
| Number of buttons: | 1key,2key,3key |
| Launch distance: | 100M(outdoor),30M(indoor) |
| Product size: | 86*86*16.5mm |
| Product Code： | 【SSSB01-R-1】；【SSSB01-R-2】；【SSSB01-R-3】； |

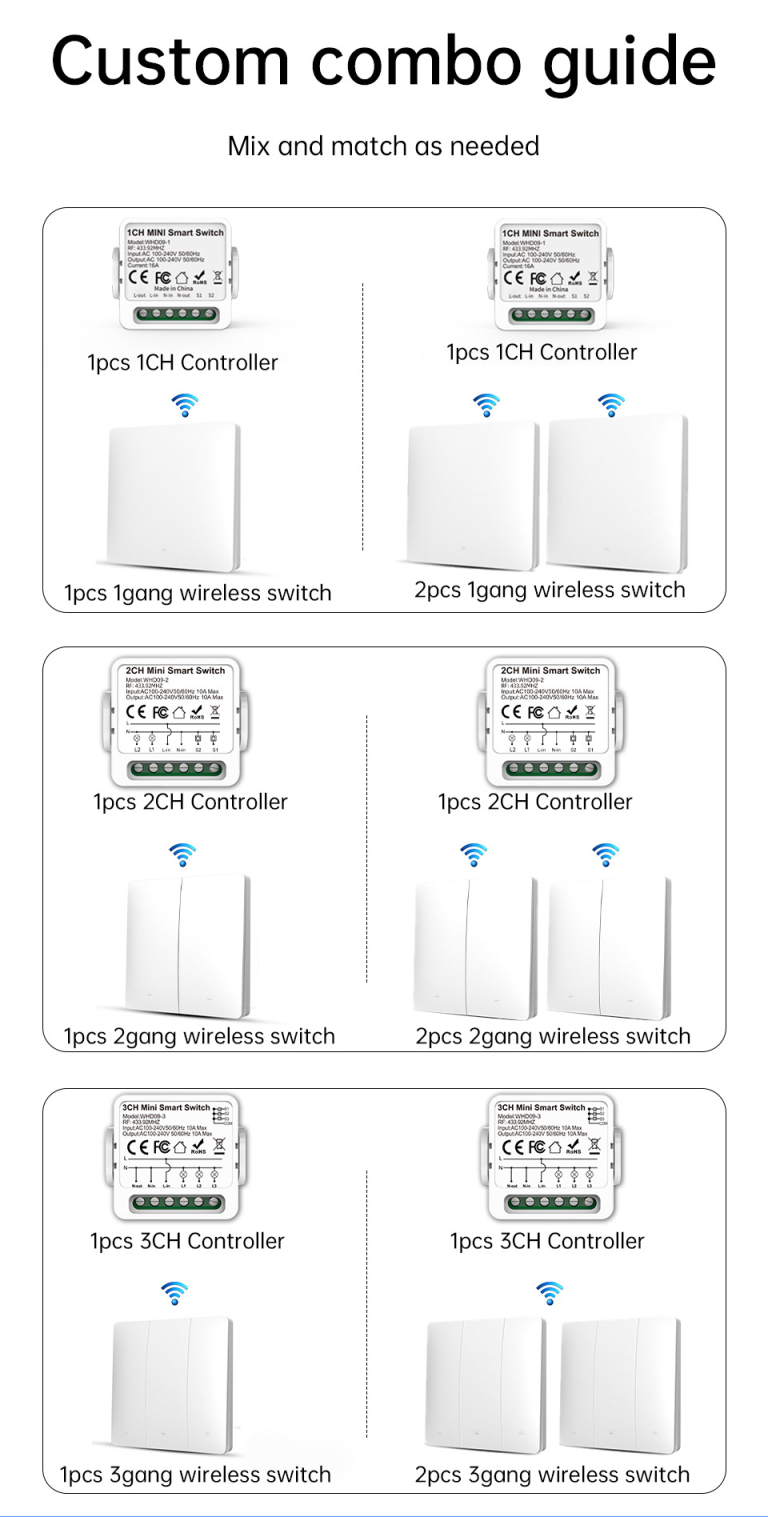

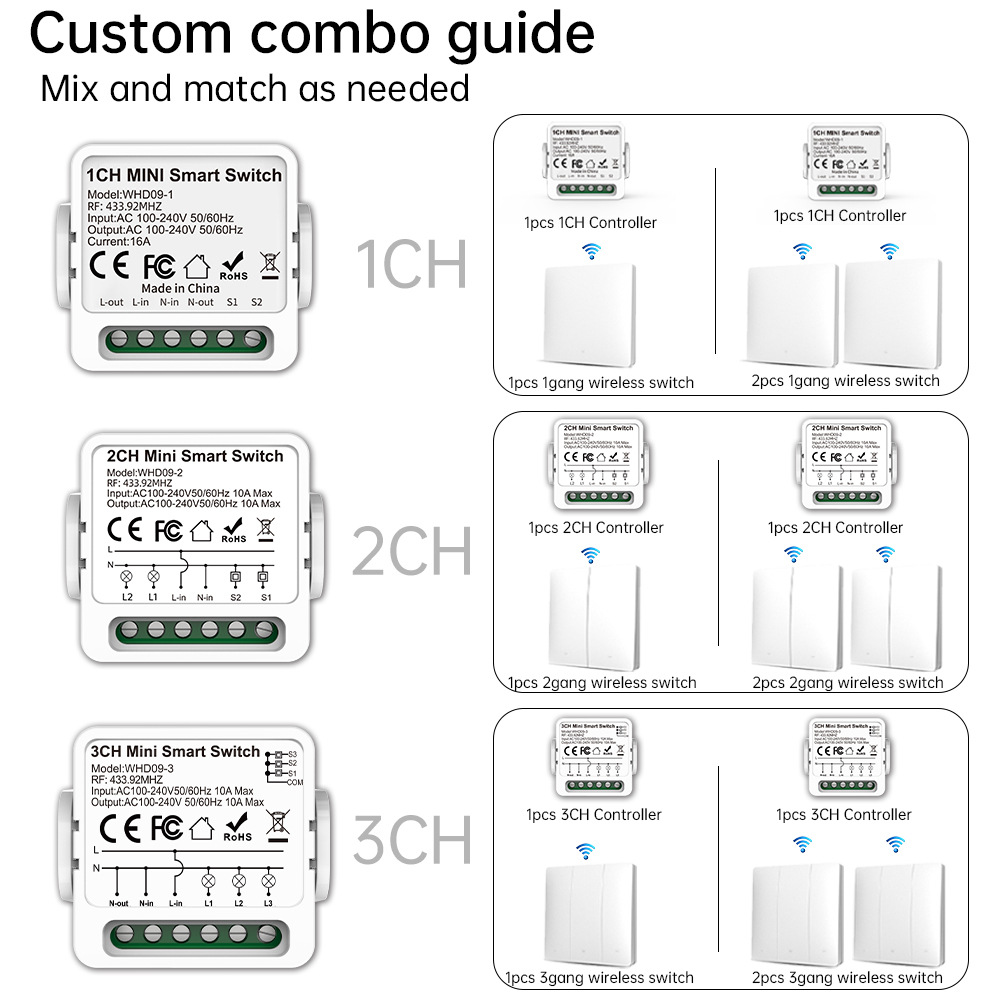

Product SKU List
| Picture | Name | Network mode | Regular color | Product Code |
|---|---|---|---|---|
 |

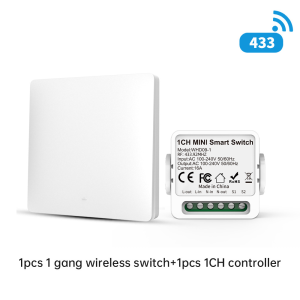

1Switch(1gang)+1CH Receiver | RF433 | White | - |
 |

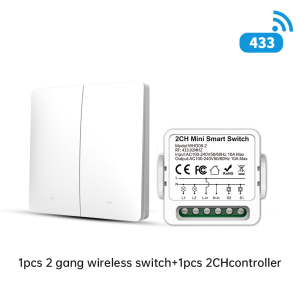

1Switch(2gang)+2CH Receiver | RF433 | White | - |
 |

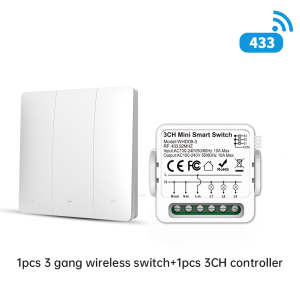

1Switch(3gang)+3CH Receiver | RF433 | White | - |
 |

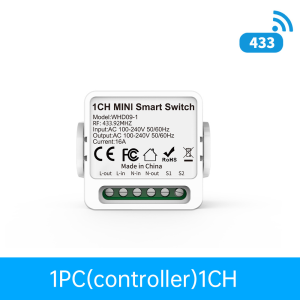

1CH Receiver | RF433 | White | WHD09-1 |
 |

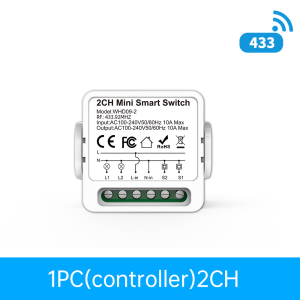

2CH Receiver | RF433 | White | WHD09-2 |
 |

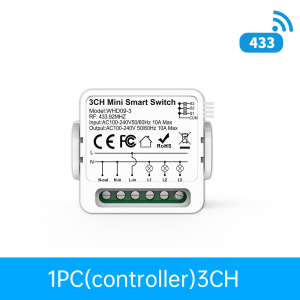

3CH Receiver | RF433 | White | WHD09-3 |
 |

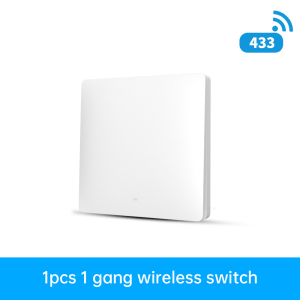

1Switch(1gang) | RF433 | White | SSSB01-R-1 |
 |

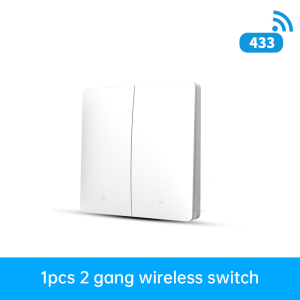

1Switch(2gang) | RF433 | White | SSSB01-R-2 |
 |

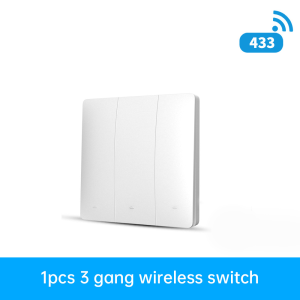

1Switch(3gang) | RF433 | White | SSSB01-R-3 |
Product Description
Trading Information
| Packaging Details: | The inner packaging is packaged with a packaging box containing an inner support structure, which can effectively prevent the product from being damaged during transportation. The outer packaging adopts a compression-resistant structure, which can effectiv |
FAQ
Q1: Where is the product manufactured?
A1: The product is manufactured in China.
Q2: certifications does this product have?
A2: The product has CE/FCC/ROHS certifications.
