Tuya Zigbee Smart Wall Switch | Magnetic Latching Relay | US 1–4 Gang No Neutral Required
The Tuya Zigbee Smart Wall Switch adopts a magnetic latching relay for ultra-low power consumption and reliable performance.
With no capacitor required for single live wire installation, it simplifies wiring and enhances durability — perfect for modern smart homes.
Compatible with Amazon Alexa, Google Home, and Smart Life / Tuya App, it enables full control via voice, app, or manual touch.
Designed for US standard wall boxes, available in 1–4 gang options, offering seamless integration into your smart lighting system.
Key Features:
- Magnetic Latching Relay – low power consumption, long lifespan, and silent switching
- No Neutral Required – single live wire installation, no capacitor needed
- Zigbee Mesh Network – stable connection with Tuya gateway
- Voice Control – supports Alexa and Google Assistant
- App Remote Control – via Smart Life or Tuya App
- Timer & Countdown – automate lights effortlessly
- Device Sharing – family members share control easily
- Group & Scene Control – create customized smart scenarios
- Elegant Touch Panel – smooth, responsive glass touch surface
Share:
Facebook
Twitter
LinkedIn
WhatsApp
Table of Contents
DESCRIPTION
Product Specifications
| Product name: | Smart Wall Switch |
| Rated Voltage： | AC100-240V 50/60Hz |
| Communication mode: | Zigbee |
| Specifications: | US Standard (1-4 channels) |

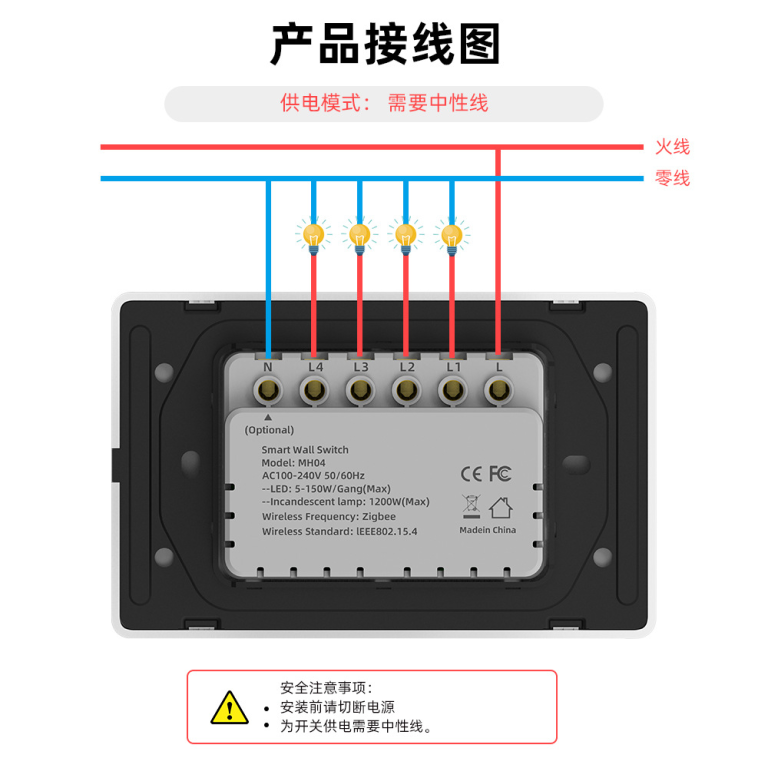

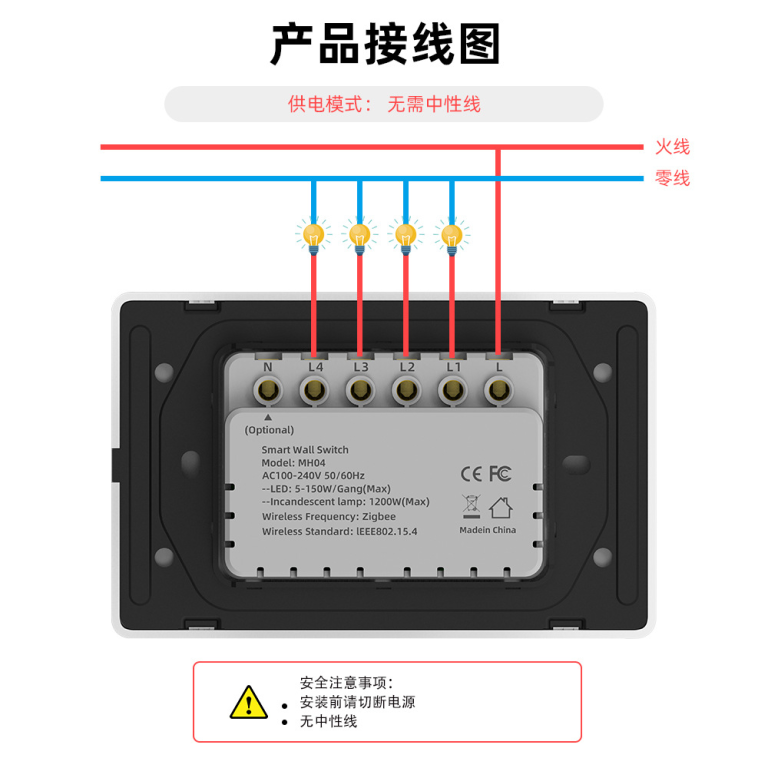

| Power Supply Mode: | Single Live Wire & Live Wire + Neutral Wire |
| Capacitor: | None |
| Static Power Consumption: | ≤0.5W |
| LED Load: | 5-150W (Max) |
| Incandescent Lamp Load: | 1200W (Max) |
| Product size: | 118x75x35mm |
| APP Remote Control: | Smart Life / Tuya Smart |
| Voice control: | Amazon Alexa / Google Assistant |
| Zigbee Gateway: | Required |
| Sharing function: | support |
| Timer Function: | support |
| Countdown function: | support |
| Colors: | White / Black |
| Part Number: | 【WSB09】 |
| Product Model: | 【WSB09-TW-C-1】；【WSB09-TW-C-2】；【WSB09-TW-C-3】； 【WSB09-TW-C-4】；【WSB09-TZ-C-1】；【WSB09-TZ-C-2】； 【WSB09-TZ-C-3】；【WSB09-TZ-C-4】； |
Product SKU List
| Picture | Network mode | Magnetic Relay | Wiring Method | Switch Units | Regular color | Product Code |
|---|---|---|---|---|---|---|
 |
Tuya WiFi+Matter | No Magnetic Relay | with neutral wire & without neutral wire(need Capacitor) | 1 | white / Black | WSB09-TW-C-1 |
 |
Tuya WiFi+Matter | No Magnetic Relay | with neutral wire & without neutral wire(need Capacitor) | 2 | white / Black | WSB09-TW-C-2 |
 |
Tuya WiFi+Matter | No Magnetic Relay | with neutral wire & without neutral wire(need Capacitor) | 3 | white / Black | WSB09-TW-C-3 |
 |
Tuya WiFi+Matter | No Magnetic Relay | with neutral wire & without neutral wire(need Capacitor) | 4 | white / Black | WSB09-TW-C-4 |
|
|
Zigbee | Magnetic Relay | with neutral wire & without neutral wire(No need Capacitor) | 1 | white / Black | WSB09-TZ-C-1 |
|
|
Zigbee | Magnetic Relay | with neutral wire & without neutral wire(No need Capacitor) | 2 | white / Black | WSB09-TZ-C-2 |
|
|
Zigbee | Magnetic Relay | with neutral wire & without neutral wire(No need Capacitor) | 3 | white / Black | WSB09-TZ-C-3 |
|
|
Zigbee | Magnetic Relay | with neutral wire & without neutral wire(No need Capacitor) | 4 | white / Black | WSB09-TZ-C-4 |
Product Display
Product Description
Trading Information
| Packaging Details: | The inner packaging is packaged with a packaging box containing an inner support structure, which can effectively prevent the product from being damaged during transportation. The outer packaging adopts a compression-resistant structure, which can effectiv |
FAQ
Q1: Where is the product manufactured?
A1: The product is manufactured in China.
Q2: certifications does this product have?
A2: The product has CE/FCC/ROHS certifications.
