Tuya Matter WiFi Smart Wall Switch | US Standard 1–4 Gang Intelligent Light Switch – Voice & App Control
Tuya Matter WiFi Smart Wall Switch combines the latest Matter protocol with Tuya’s proven WiFi ecosystem, ensuring stable, secure, and universal smart home connectivity.

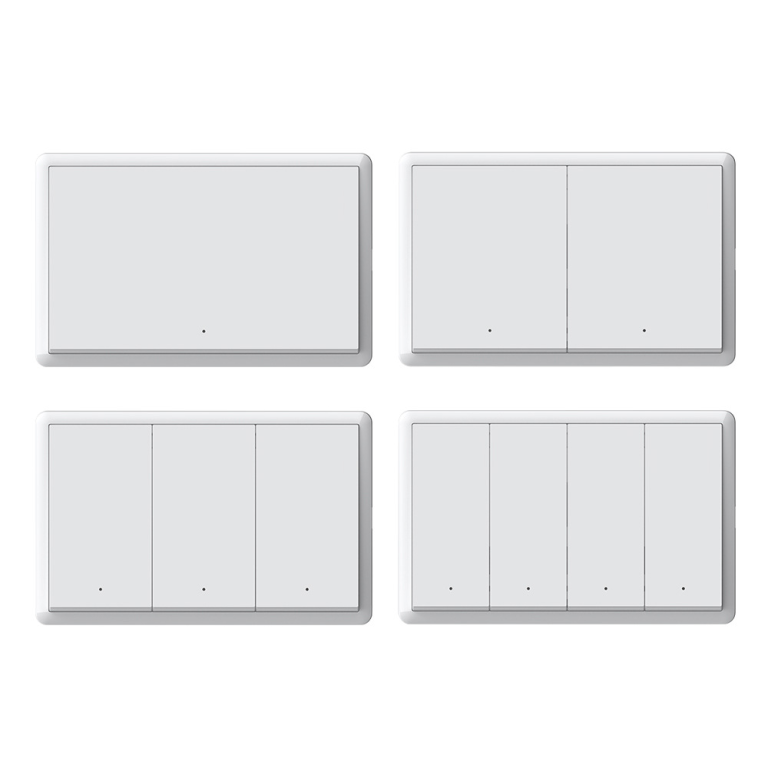

Designed for US standard wall boxes, this smart switch supports 1–4 gang configurations, offering flexible lighting control for any room.
Easily integrate with Apple HomeKit, Amazon Alexa, Google Home, and Smart Life, allowing effortless App, voice, and manual button control.
Key Features:
- Matter + Tuya WiFi dual protocol for wide compatibility
- Voice Control via Alexa, Google Assistant, and Siri
- App Remote Control with Smart Life or Tuya App
- Timer & Countdown scheduling for automation
- Device Sharing with family members
- Sensitive Touch Button Design for easy operation
- Group Control & Scene Creation for a smart lifestyle
Share:
Facebook
Twitter
LinkedIn
WhatsApp
Table of Contents
DESCRIPTION
Product Specifications
| Product name: | Smart Wall Switch |
| Rated Voltage： | AC100-240V 50/60Hz |
| Communication mode: | WiFi / Matter |
| Specifications: | US Standard |

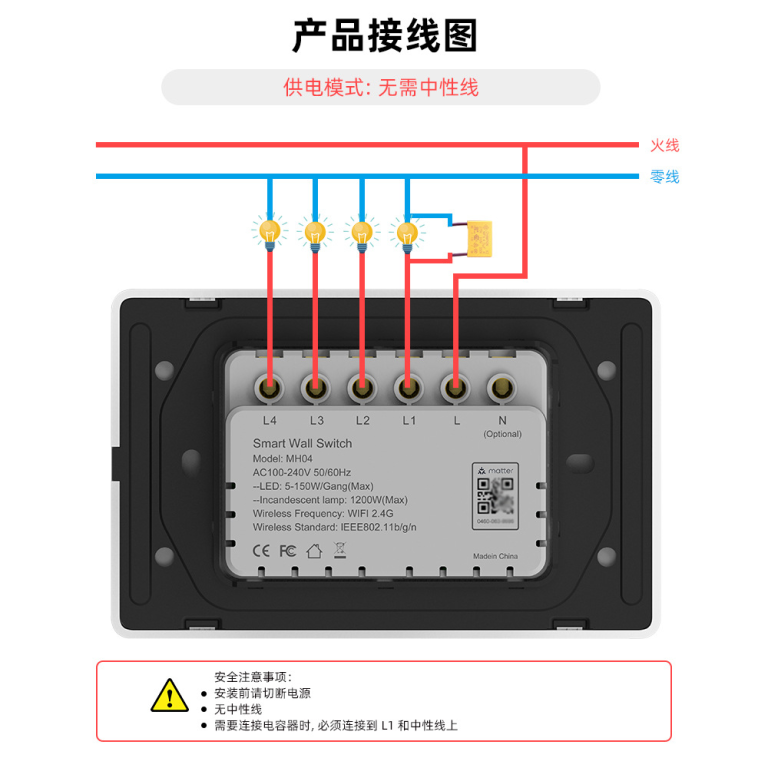

| Power Supply Mode: | No Neutral Wire/With Neutral Wire |
| Capacitor: | Yes |
| Static Power Consumption: | ≤0.5W |
| LED Load: | 5-150W (Max) |
| Incandescent Lamp Load: | 1200W (Max) |
| Product size: | 118x75x35mm |
| APP Remote Control: | Smart Life / Tuya Smart / Homekit |
| Voice control: | Amazon Alexa / Google Assistant |
| Sharing function: | support |
| Timer Function: | support |
| Countdown function: | support |
| Colors: | White / Black |
| Part Number: | 【WSB09】 |
| Product Model: | 【WSB09-TW-C-1】；【WSB09-TW-C-2】；【WSB09-TW-C-3】； 【WSB09-TW-C-4】；【WSB09-TZ-C-1】；【WSB09-TZ-C-2】； 【WSB09-TZ-C-3】；【WSB09-TZ-C-4】； |
Product SKU List
| Picture | Network mode | Magnetic Relay | Wiring Method | Switch Units | Regular color | Product Code |
|---|---|---|---|---|---|---|
 |
Tuya WiFi+Matter | No Magnetic Relay | with neutral wire & without neutral wire(need Capacitor) | 1 | white / Black | WSB09-TW-C-1 |
 |
Tuya WiFi+Matter | No Magnetic Relay | with neutral wire & without neutral wire(need Capacitor) | 2 | white / Black | WSB09-TW-C-2 |
 |
Tuya WiFi+Matter | No Magnetic Relay | with neutral wire & without neutral wire(need Capacitor) | 3 | white / Black | WSB09-TW-C-3 |
 |
Tuya WiFi+Matter | No Magnetic Relay | with neutral wire & without neutral wire(need Capacitor) | 4 | white / Black | WSB09-TW-C-4 |
|
|
Zigbee | Magnetic Relay | with neutral wire & without neutral wire(No need Capacitor) | 1 | white / Black | WSB09-TZ-C-1 |
|
|
Zigbee | Magnetic Relay | with neutral wire & without neutral wire(No need Capacitor) | 2 | white / Black | WSB09-TZ-C-2 |
|
|
Zigbee | Magnetic Relay | with neutral wire & without neutral wire(No need Capacitor) | 3 | white / Black | WSB09-TZ-C-3 |
|
|
Zigbee | Magnetic Relay | with neutral wire & without neutral wire(No need Capacitor) | 4 | white / Black | WSB09-TZ-C-4 |
Product Display
Product Description
Trading Information
| Packaging Details: | The inner packaging is packaged with a packaging box containing an inner support structure, which can effectively prevent the product from being damaged during transportation. The outer packaging adopts a compression-resistant structure, which can effectiv |
FAQ
Q1: Where is the product manufactured?
A1: The product is manufactured in China.
Q2: certifications does this product have?
A2: The product has CE/FCC/ROHS certifications.
